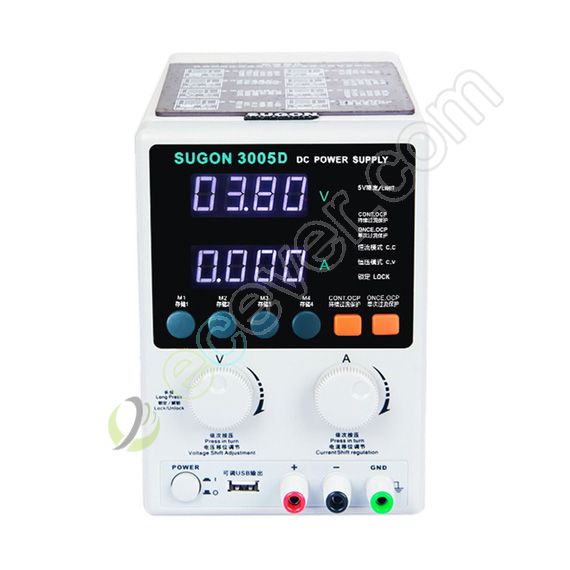

SUGON 3005D Digital Adjustable 30V 5A DC Power Supply

Features :

• 30V/5A full digital power control single

• 10mV/1mA high accuracy and resolution

• Low noise and ripple

• CV/CC given voltage and constant current mode

•  Highly reliable OCP, OVP, arbitrarily set protection

• Built-in set of parameters stored

• Outputs a switch control

• Power and memory function

• Keypad lock to prevent misuse

• Intelligent temperature control fan, effectively reduce the noise

• Easy alternative to traditional digital power

• Precisely generate the required voltages and currents.

• 0-30V adjustable DC output high-precision.

• 10mV and 1mA resolution.

• Professional power supply design with intuitive operability.

• Simple and intuitive operation, fast and accurate selection of voltage and current can be realized.

• To prevent damage to the load can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can

• The keyguard lock panel buttons to prevent undesirable results in the key test engineering

• Just press the button to recall and save area a key to bring up the user to store the data and save user settings

Specification :

• Operating Conditions :

• Input voltage : 220V /110V+/

• Frequency range : 50- 60Hz

• Operating temperature : 32-104 ℉ (0-40 ºC)

• Operating humidity : < 80%RH

• Storage temperature : 32-158 ℉ (0-70 ºC)

• Storage humidity : < 70%RH

Stable Voltage :

• Output Voltage Range : 0-30V Continuously adjustable

• Setup Resolution : 10 mV

• Setup Accuracy : <0.05% +20 mV

• Ripple : < 1mVRMS

• Read back Accuracy : 10 mV

• Temp. Coefficient : < 0.1% + 10mV

• Read back Temp. Coefficient : < 100 ppm+10 mV

Stable Current :

• Output Current Range : 0-5A Continuously adjustable

• Setup Resolution : 1 mA

• Setup Accuracy : <0.1% +3 mA

• Ripple : < 3mARMS

• Read back Accuracy : 1 mA

• Temp. Coefficient : < 0.1% + 5mA

• Read back Temp. Coefficient : < 100 ppm+5 mA

• Dimensions : 4.3 x 6.1 x 10.25 inch (110 x 156 x 260mm)
• weight: 5kg

Package includes :

 1 x Adjustable DC Power Supply

 1 x  Power line(EU/AU/US)
